OSAKO is constantly developing new products with the best features.
Meaning of corporate mark: good! “G” and new! “N”
OSAKO’s is the world’s select saddle stitcher.
You can expect an increase in productivity by keeping running costs low.
“Easy maintenance and operation”
“Durable and reliable.”
“Can handle signatures of various thicknesses and sizes”
“Cost reduction with automatic power saving equipment”
Easy maintenance and operation
“Each machine is equipped with a centralized grease-up system, and the three-knife trimmer is equipped with an automatic oil feeding device.”

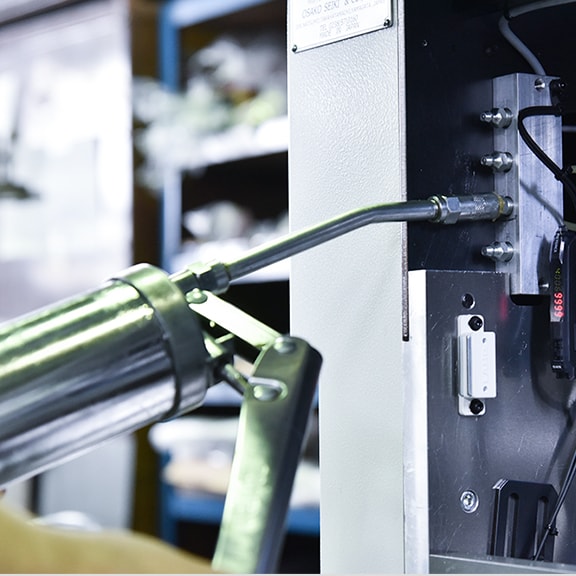

Centralized grease-up system for saddle stitching machines
“Injected into the push-up part and the measurement driving part, which are the weak points of the saddle stiching machine.”
Centralized grease-up system for rotary feeder machines
“Injected into each cam that wears frequently. In addition, it has a small window for easy maintenance work.”
Automatic oil feeding device for three-knife trimmer machines
“Maintenance-free automatic oil feeding device.
You can see the amount of oil, making oil-changing simple.”
Excellent durability and reliable.
Utilizing the experience we have cultivated over many years, we are manufacturing products that sincerely reflect our customer’s voices.
Change from ball bearings to cylindrical roller bearings.
Became stronger by improving the part of the saddle stitching machine where the load is likely to be applied.
Change from ball bearing to rod end.
Now more durable with an improved parts replacement cycle.
Uses an oilless slide plate.
“Durability and aftercare have been improved by using the oilless slide plate, which was not used in the past.”
Can handle signatures of various thicknesses and sizes
“Handles from A6 size to A3 size, and the center cut device can handle up to 300 x 470/2 mm and up to 75 x 180/2 mm.
Options such as an air-blown blade are available for thin paper and tabloids. “
Air blow guide
For signatures tabloids that are difficult to open and hang on the rail, an air-blow guide can be used to hang so that it sticks to the rail.
Center cut device
“Cuts the center of the top and the bottom at the same time in the process of two-up binding.
Two books are completed in one rotation, doubling the production.
We have a large selection of center cut widths.”
As the signatures overlap, there will be a gap. If it cannot be fixed with a normal leaf spring method, an arm brush is used to correct the misalignment.
Cost reduction with automatic power saving equipment
Highly efficient work is possible using the latest electronics.
By using the misfeed device, if the paper feed is missed the paper will not be fed from the next feeder or the one after the next , thus reducing repair work.
Auto stitch heading position
The automatic size setting system shortens time changing trays, and can set the mission of the rotary feeder, the signature scanner, the caliper device, and the size change of the three-knife trimmer in a continuous flow.
NG monitor screen
With the NG monitor, you can monitor which inspection device is detecting the malfunction and identify the problem.
